Allen & Heath’s most advanced analogue DJ mixer yet
Allen & Heath

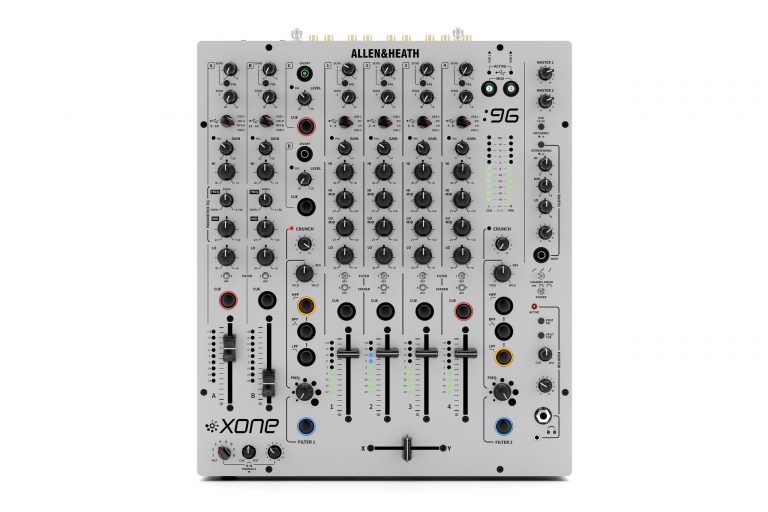

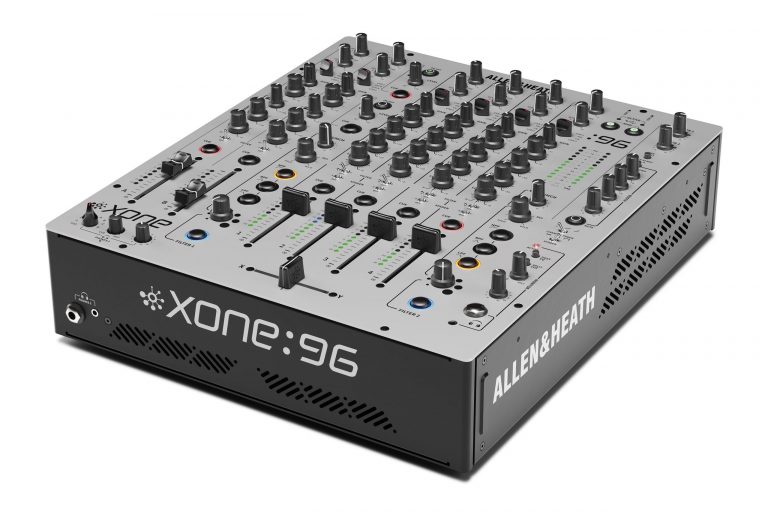

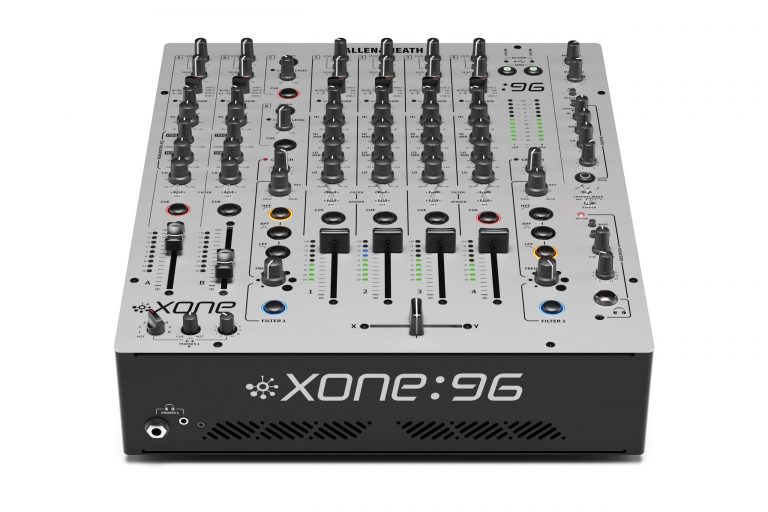

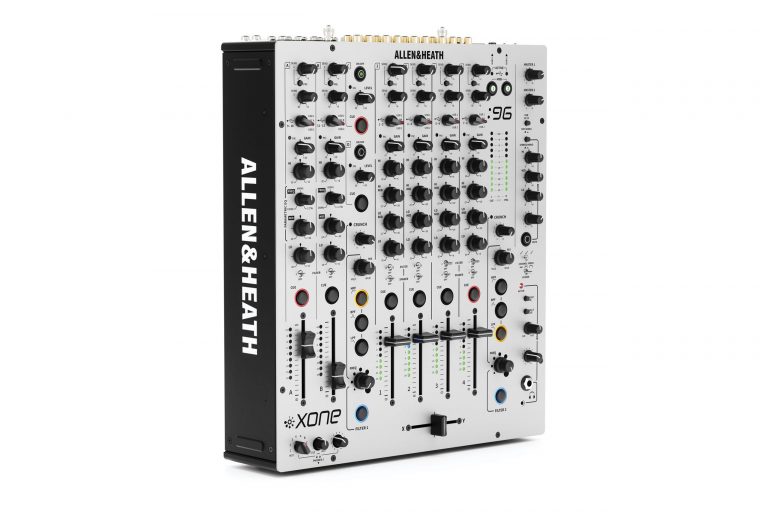

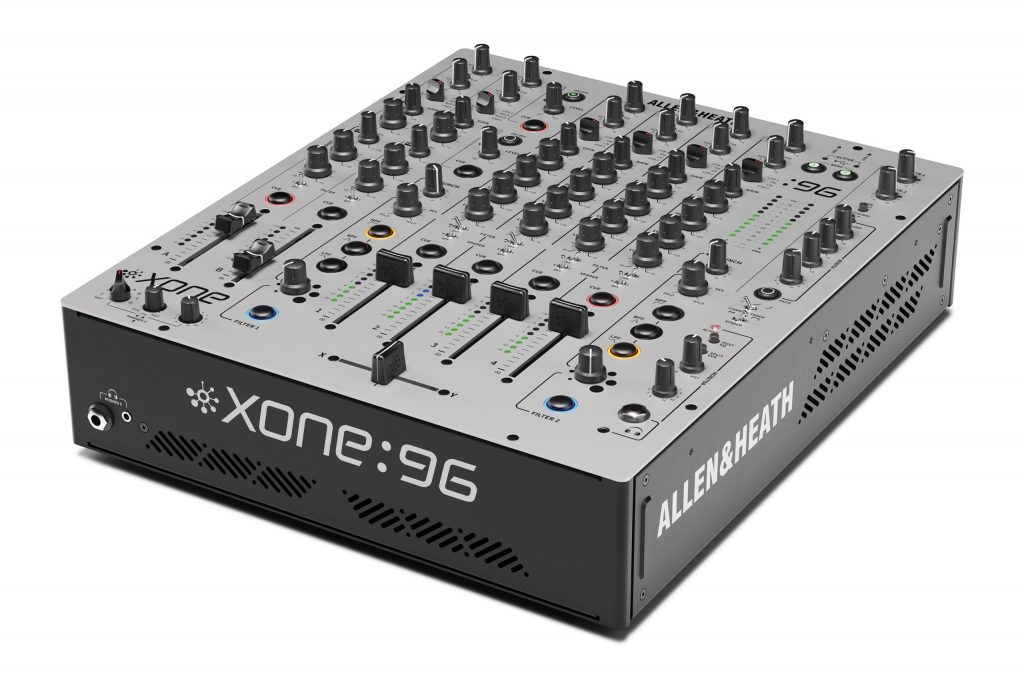

Xone 96
An uncompromising analogue DJ mixer, destined to be the heart of your creativity, Xone:96 takes the legendary soul of the acclaimed Xone:92 and redelivers it, enhanced, and with state-of-the-art digital connectivity.
It’s all here. The huge, detailed, space-shaking analogue sound that only Xone delivers. A refined, precision 4-band EQ. Unrivalled dual Xone:VCF filters with CRUNCH harmonic distortion. And a dual 32-bit USB soundcard (24 Channels @ 96kHz) with Traktor Scratch certification right out of the box.
Xone:96 lets you connect your whole rig, from laptops and turntables, to pedals, synths and drum machines.
Two dedicated FX sends, four stereo input channels (with 4-Band EQ), two stereo input channels with all new 3-Band Parametric EQ + two auxiliary stereo return channels. And a separate master insert for your outboard hardware.
Explore new possibilities with a familiar layout of beautifully tactile controls. And rely on the industrial build quality that exceeds the demands of relentless back-to-back performances, night after night.
Xone96: You mixed. We listened.
Specifications
Main Features
Type Analogue
Channels 6 + 2
EQ
Channel 1-4, 4-Band EQ
Channel A-B, 3-Band Parametric EQ
USB Soundcards Dual 24 Channel (12 in / 12 out)
Hi-Speed USB2.0 / Mac Class Compliant
32bit / 96kHz
MIDI over USB

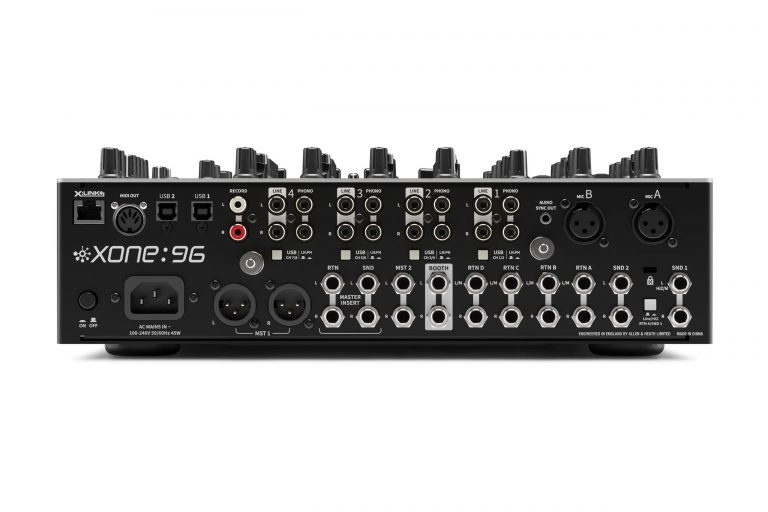

Line Inputs 4 x RCA (CH 1-4)
4 x 1/4″ TRS (CH A-D) Mono/Stereo
Phono Inputs 4 x RCA (CH 1-4)
LN/PH Switch for DVS
USB Inputs 6 x USB (CH 1-4 + CH A – CH B)
Mic Input 2 x XLR
Master Output 1 x XLR (Balanced)
Master 2 Output 1 x 1/4″ TRS (Balanced)
Booth Output 1 x 1/4″ TRS (Balanced)
Record Output 1 x RCA (Un-balanced)
Master Insert 1 x 1/4″ TRS
MIDI Out 1 x 5-Pin DIN
Send/Return I/O
2 x 1/4″ TRS Send
4 x 1/4″ TRS Return
1 x LN/Hi-Z Switch (SND1/RTNA)
Filter
2 x VCF Filter
HPF / BPF / LPF
Adjustable Frequency & Resonance
Assignable CH 1-4 + CH A-B
CRUNCH (Controlled Harmonic Signal Distortion)
X-Link 1 x RJ45
Headphones
2 x 1/4″
2 x 3.5mm
Split Cue Monitoring
Channel Faders 60mm VCA / Replaceable
Chanel Meters 9 Segment LED
Channel Fader Curve 3 Types
X-Fader InnoFADER / 45mm VCA / Replaceable
X-Fader Curve 3 Types
Earth Ground Terminals x 2
Headroom 20dB
AC Mains
100 to 240V
AC 50/60Hz
Consumption 45W max
Mains Adaptor 3 pin IEC socket
Height 109mm / 4.3″
Width 336mm / 13.25″
Depth 410mm / 16.2″
Weight 7kg / 15.4 lbs.
