Pioneer dj

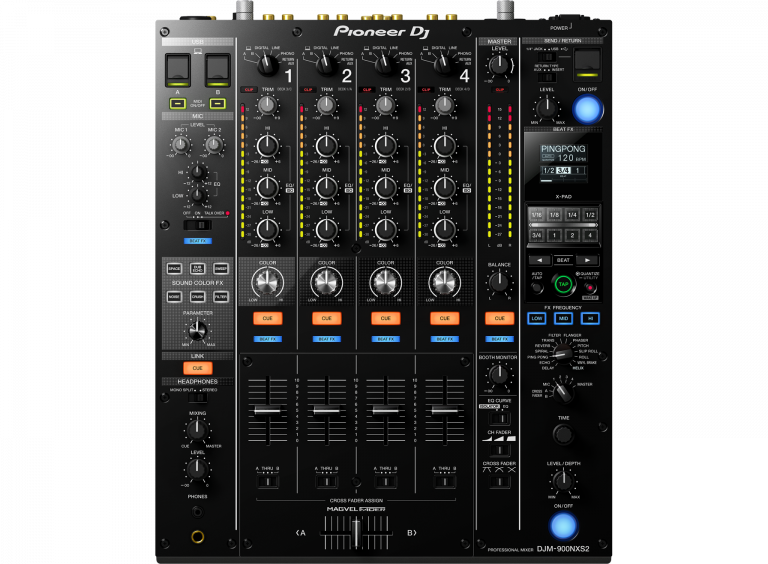

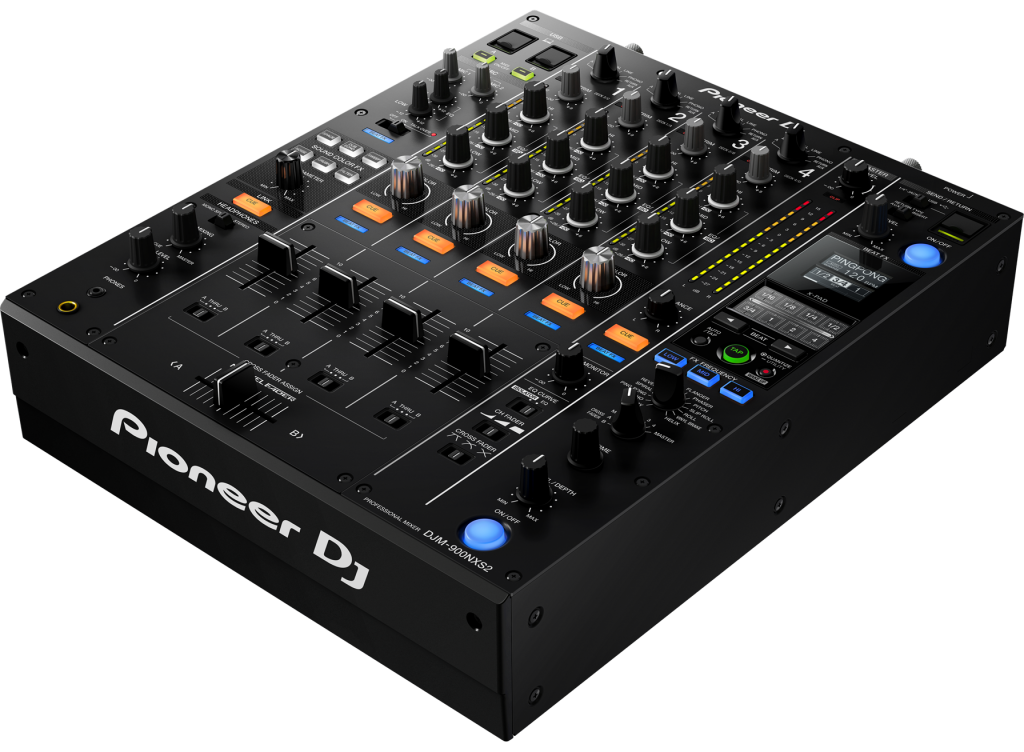

DJM-900NXS2
Take your performance to new heights with the DJM-900NXS2, which features our first ever 64-bit mixing processor for a warmer, more nuanced sound
Pioneer DJ
DJM-900NXS2
Take your performance to new heights with the DJM-900NXS2, which features Pioneer’s first ever 64-bit mixing processor for a warmer, more nuanced sound. Pioneer have fine-tuned the EQ and fader curves and enhanced the FX controls to give you even more creative choice. Plus the versatile DJM-900NXS2 has an independent Send/Return, 4 phono inputs and 2 USB ports – giving you flexibility to set it up your way.
Specifications
MIDI Control
- Full assignable MIDI controls
ProDJ Link
- P-LOCK Fader Caps
- Auto Standby
Compatible DJ Software: rekordbox
- DVS Control
Specifications
Frequency Range
- 20 – 40000 Hz
Sampling Rate
- 96 kHz
Width
- 333 mm
Height
- 107.9 mm
Depth
- 414.2 mm
Weight
- 8 kg
A/D Converter
- 24 bit
D/A Converter
- 32 bit
S/N Ratio Line
- 105 dB
S/N Ratio Phono
- 88 dB
S/N Ratio Mic
- 79 dB
Distortion
- < 0.005 % (LINE)
Channels
EQ/ISO
- 3 band
EQ/ISO Range
- Built-in, switchable 3-band equaliser: -26 dB ~ +6 dB / 3-band isolator: -∞ ~ +6 dB
Performance Control
Channels 4
Sound Colour FX
- Crush
- Dub Echo
- Filter
- Noise
- Sweep
- Space
Beat FX
- Delay
- Echo
- Filter
- Flanger
- Helix
- Phaser
- Ping Pong
- Pitch
- Slip Roll
- Spiral
- Reverb
- Roll
- Trans
- Vinyl Brake
FX Frequency
- X-PAD
- rekordbox Quantize
Crossfader
Crossfader Type
- Magvel Fader
CURVE Assignable
- Yes
Fader Curve
- 3
Mic
Mic Connection
- XLR / 1/4-inch Jack Combo
- 1/4-inch TRS Jack
Talkover
- 3 Position Switch
- Talkover Attenuator
Terminals
Inputs
- 4 DIGITAL (Coaxial)
- 4 CD/LINE (RCA)
- 4 PHONO (RCA)
- 2 MIC (XLR/TRS Jack Combo, 1/4 inch TRS Jack)
Send/Return
- 1 SEND (1/4-inch TS jack)
- 1 RETURN (1/4-inch TS jack)
LAN
- 1
Outputs
- 2 MASTER (XLR, RCA)
- 1 BOOTH (1/4 inch TRS Jack)
- 2 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
- 1 REC OUT (RCA)
- 1 DIGITAL (Coaxial)
USB
- 2 USB B ports
- 1 USB A port
