Turbosound
Milan M12

1100 Watt 2 Way 12″ Full Range Powered Loudspeaker

Turbosound


MILAN M12

1100 Watt 2 Way 12″ Full Range Powered Loudspeaker with Klark Teknik DSP Technology for Portable PA and Installation Applications



The 1,100-Watt full range MILAN M12 is a portable 12″ two-way powered loudspeaker featuring: two independent input channels with Mic and Line Inputs, selectable via a Mic/Line switch; a two-band master EQ (Bass, Treble); intelligent Limiting; and a Mix Out function for connecting additional powered loudspeakers for easy system expansion.



Designed for both portable and permanent install applications, the M12’s discrete inputs are each equipped with balanced, combination ¼ ” jack/ XLR connectors and a Level control, making them ideally suited for a wide range of music sources, from low-impedance microphones, acoustic guitars and keyboards – to mp3 players and mixing consoles.

Specifications

Components

  • 1 x 12″ LF driver
  • 1 x 1″ HF driver

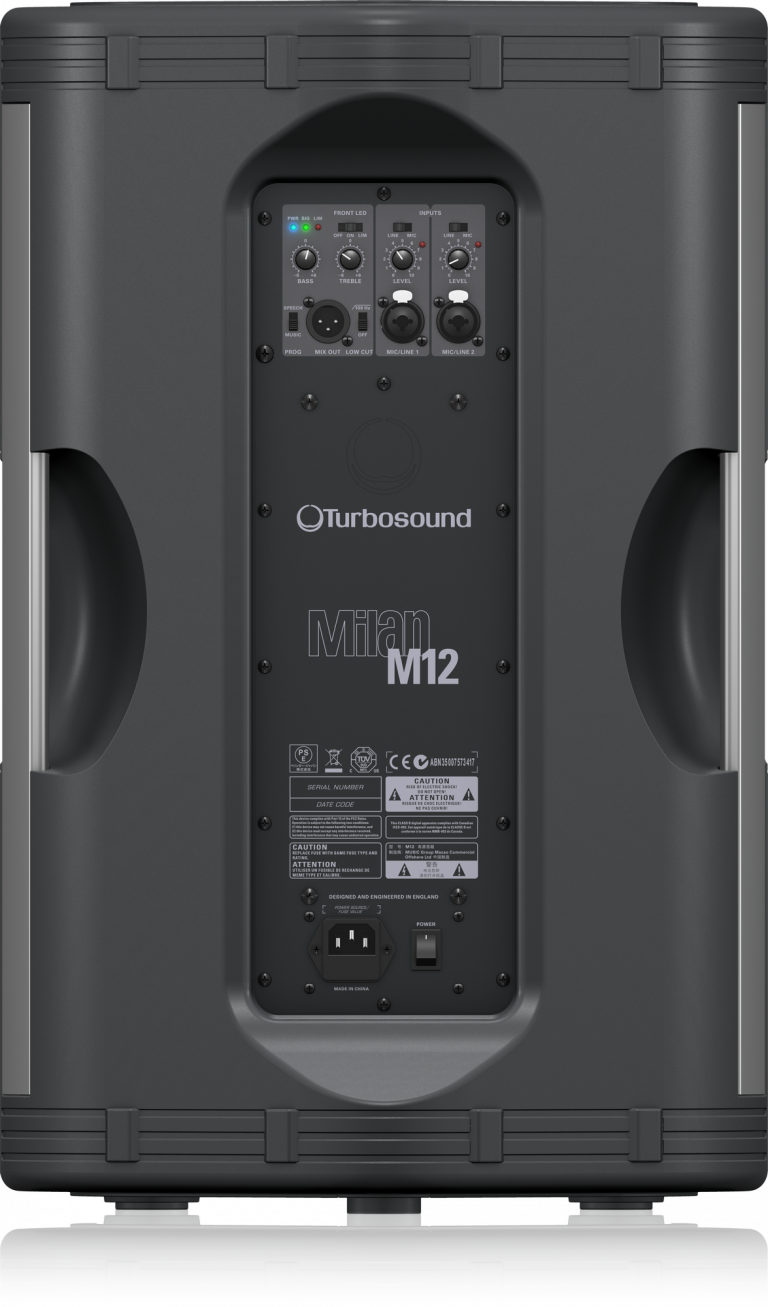

Connectors

  • Mic/Line input: combo jack/female XLR wired pin 2 hot
  • Mix out: male XLR wired pin 2 hot
  • IEC mains connector with integrated fuseholder



Controls

  • Level
  • Line/Mic
  • Low Cut
  • Speech/Music
  • Bass and Treble
  • Front LED
  • Mains on/off



System Data



Frequency Range

  • 50 Hz–18 kHz ±3 dB
  • 45 Hz–20 kHz -10 dB

Dispersion @-6 dB pts

  • 90° H x 60° V

Max SPL (peak)

  • 128 dB

Equalisation

  • Bass: ±6 dB @ 80 Hz
  • Treble: ±6 dB @ 12 kHz

Boost Frequency

  • N/A



Indicators

  • Power LED: Blue
  • Signal LED: Green
  • Limit LED: Red
  • Clip LED: Red



Circuit Protection



Amplifier Protection

  • Full short circuit, open circuit, thermal



LF/HF Driver



Max Output Power

  • LF: 1000 W HF: 100 W



Audio Inputs



Input Sensitivity

  • Mic: -32 dBu; Line: -2 dBu

Input Impedance

  • Mic: 560 O unbalanced, 1 kO balanced; Line: 20 kO unbalanced, 40 kO balanced



Power Supply, Voltage (Fuses)



UK / Australia / Europe

  • 220–240 V~, T 4.0 A H 250 V

Power consumption@ 1/8 max power

  • 140 W

Rigging options

  • 6 x M10 threaded internal rigging points



Construction / Dimensions / Weight



Construction

  • Injection-moulded polypropylene enclosure. Recessed carrying handles. Integral dual-angle pole mount socket. Powder coated galvanised perforated steel mesh grille with foam backing

Dimensions (H x W x D)

  • 620 x 394 x 330 mm (24.4 x 15.5 x 13″)

Net weight

  • 5 kg (45.1 lbs)
